Electric Steam Boiler

Electric Steam Boilers

Over 128 years of
Great British
Manufacturing

About the Electric Steam Boiler Range

With the current emphasis on reducing carbon footprints and protecting the environment, the Electric Range of boilers from CFB is a must to help your company achieve these initiatives.
Our electric steam boilers boast a large steam chamber for dryer steam and quick response, elements that require minimal maintenance, and a compact, space-saving design that enables the boiler to be sited next to the application for lower installation costs.

These packaged units include a pressure safety gauge, safety blowdown, gauge glass set, steam outlet valve, boiler feed pump and level controls fitted as standard. The control panel is free-standing on the outside of the unit to ensure easy access and to avoid overheating of the controls and wiring.

These units come in a range of 6 models that can provide saturated steam outputs between 350kg/hr up to 7,500kg/hr.

The main areas of use of electric steam boilers are all sectors of business, the processing and supply industries, and public facilities.

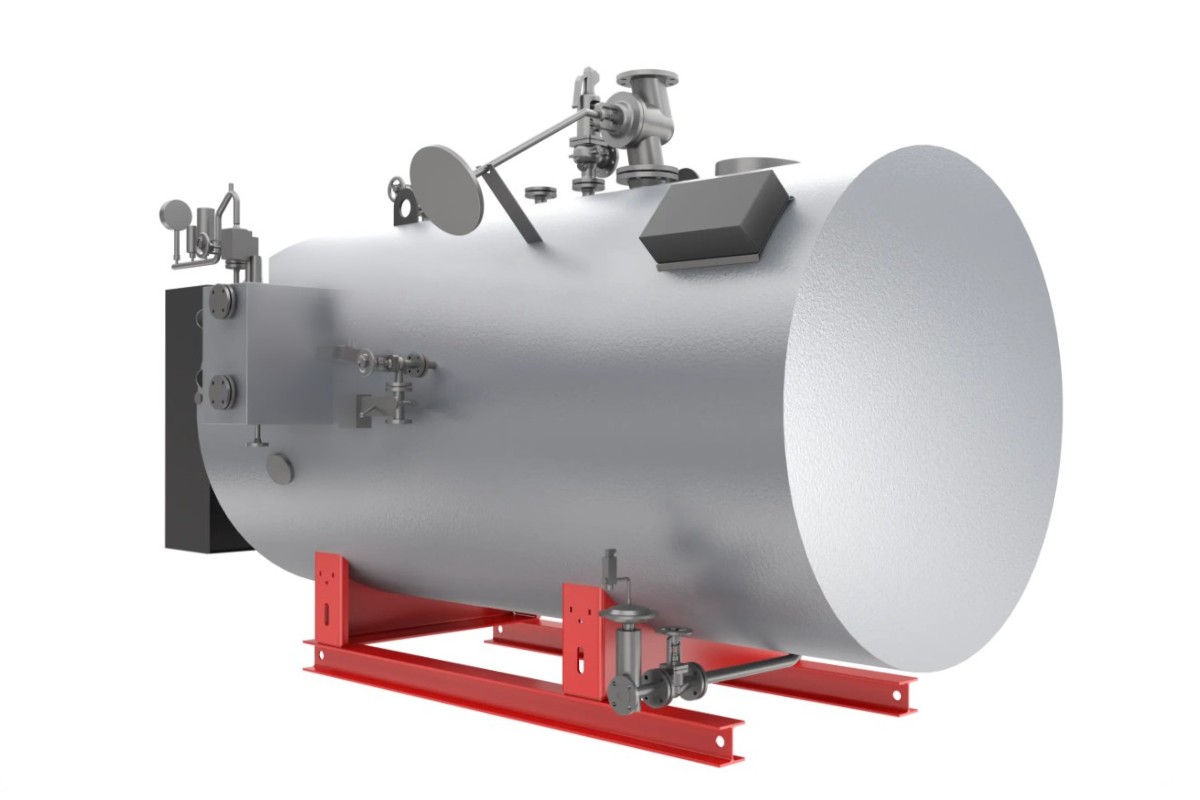

High Output Electric Steam Boiler

  • 236 to 5040kW Rating
  • Steam working pressure 7 to 16 Bar g
  • U-Shaped elements ensures long service life
  • Large steam space ensures best steam quality
  • Packaged unit
  • Plug and Play Solution
  • Easy access to control panel

Why you need our Electric Range of Boilers

  • Space and cost saving design
    Compact design makes siting the boiler easy, even in small or awkward areas, and enables the boiler to be sited next to the application for lower installation costs
  • High performance
    The large steam release area ensures the production of dry steam without water carry over.
  • Durable construction
    The boiler body includes anti-corrosion paint, insulation made of mineral wool mats, a protective jacket made of textured aluminium and a skid-base frame to provide a robust packaged unit.
  • Design
    The boiler is constructed according to EN 12953 with a design pressure of 16 bar.g. The unit is available for salty / low-salt operation according to B002 and is available for use within the United Kingdom as well as all EU Countries.
  • Electrics

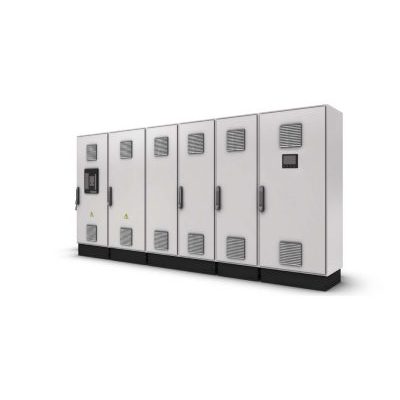

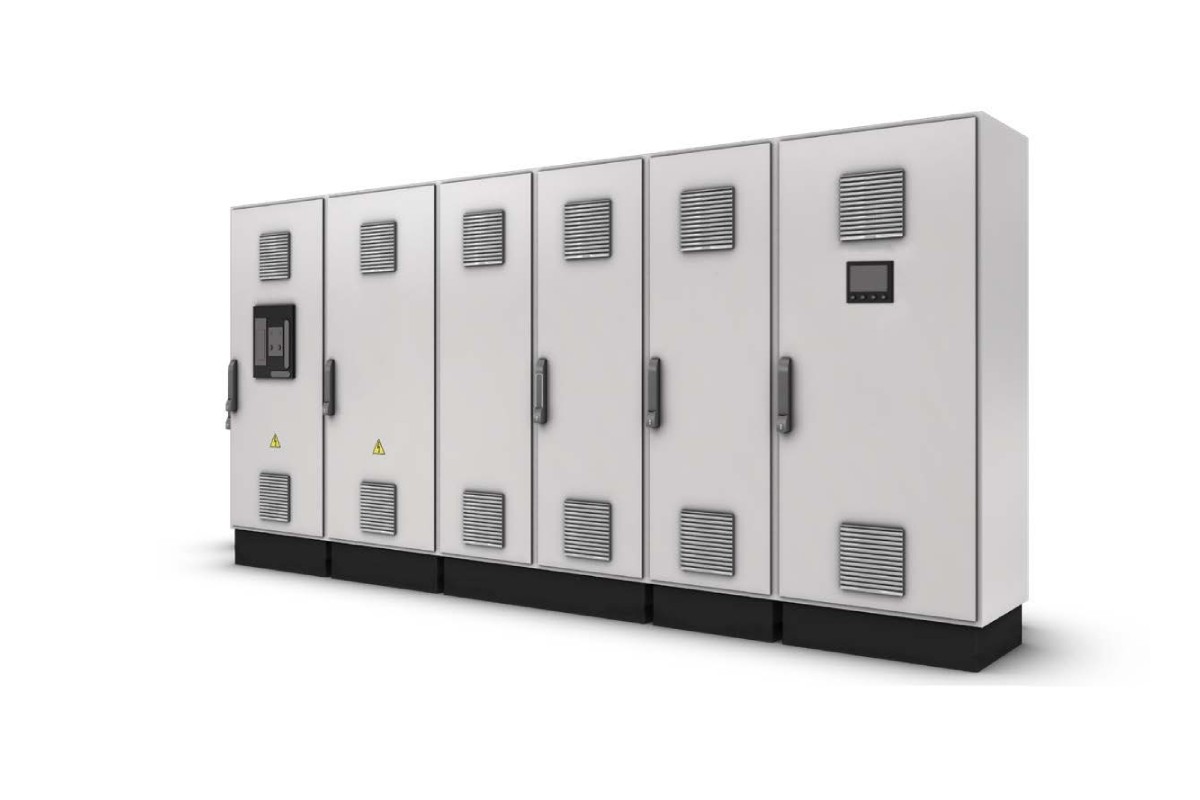

    The boiler comes complete with it’s own Boiler Control Cabinet and all wiring between the boiler and the control cabinet is included.

Finance Available

Talk to us about our flexible finance options

Boiler Hire

There are many reasons for requiring a hire boiler. Maybe An existing boiler plant has broken down? A short-term gap between the removal of your old boiler and installation of your new one? Planning a long-term need for extra capacity? Trialling the development of a new product that requires steam or hot water?

Whatever the reason you may need to hire a commercial boilers, or an entire packaged plant, we are the experts to turn to and here’s why:
There are no hidden extras – you will know exactly how much your boiler hire will be, allowing you to carefully manage your budget.

Quick and easy hook up: our industrial boiler hire units include everything required for the boiler to be up and running immediately

Learn more

System Design

Our Design Service specialises in creating Computer-Aided Design (CAD) models. Our highly-trained draftsmen work with engineers, site operatives and customers to design and create 2D and 3D computer models of Boilers, Ancillary Equipment, Layouts of Boiler houses, Plant rooms, Piping Schematics, Wiring Diagrams and much more.

Working to ensure that your chosen equipment will fit into the required space and providing you with full technical information regarding all aspects of your boiler and ancillary equipment.

We also ensure that the equipment provided meets specification criteria and local regulations including Clean Air Act, Medium Combustion Plant Directive, BG01 and more.

  • Bespoke solutions. Our huge range of products and purpose-built manufacturing facility allows us to design and manufacture boiler solutions to meet your precise needs. Book a site survey now and get started.
  • Flexible approach. We’re here to help. We’ll work with you at any stage of the project, and are happy to liaise with building service engineers, gas suppliers and architects to achieve the most efficient installation.
  • Try before you buy. As well as boiler hire, we can arrange for you to visit a similar installation in-situ so you can see what you’ll be getting and meet our other happy customers
  • Clear proposals. After a site visit (if necessary), we’ll provide you with a detailed, clear proposal that includes technical, performance and financial information. If applicable, we will include cost and energy saving projections.
Learn more

System Installation

We know that a seamless installation is vital to business continuity and efficiency, and your needs are our main priority. This is why our installation service is second to none:

  • Flexible approach: We install at a time that’s best for your business, whether that’s during normal working hours (with a short, planned shutdown if necessary), or at off-peak times such as weekends
  • Experienced team: Our engineer, design and sales teams benefit from CFB Boilers’ 126 years’ experience in manufacturing and installing steam boiler solutions. You can benefit from this experience too.
  • We love a challenge: Difficult location? Restricted access? Tiny space? No challenge is too big for our highly experienced team as we’ve installed steam boilers everywhere, from tin mines to old cupboards
  • Comprehensive service: Our complete range of steam boilers means that we have systems available to suit most applications, which combined with our technical expertise, gives us a distinct advantage when it comes to system installation.
Learn more

Maintenance & Service Contracts

Achieving maximum longevity, performance and efficiency out of your steam boiler system, and eliminating premature repairs and breakdown, is easily and cost-effectively achieved with our planned preventative maintenance services. We also provide service contracts with a minimum 1 yearly contract as it is required by law that your steam boiler must have a yearly inspection.



  • Free boiler clean: As part of a standard service, we will strip your boiler down and give it a thorough clean. This is not standard practice in the industry – we go above and beyond in ensuring the long-term performance and reliability of your boiler
  • Fixed price service: We offer fixed rate servicing to give you peace of mind and complete cost control
  • No unexpected costs: If any additional work is required, we will always conduct a site visit in order to provide an accurate quotation with us there are no hidden or unexpected costs
  • Flexible packages: We will tailor a maintenance package to you so that you get the most efficiency and cost-effective service possible
  • Convenient and efficient: It is our aim that your business can continue to run without disruption, so any work carried out will be completed in the most efficient way possible by our expert team of engineers
  • Complete peace of mind: Many of our customers choose to retain us on a contract basis, ensuring that standard maintenance and repairs are fully managed.
Learn more

Repairs

Long-term performance and reliability are built into the very fabric of our boilers, which are designed and engineered to the highest standards. On very rare occasions, or with some older boilers (some of our boilers installed in the 1950s are still going strong!), repair may be required. If it is, you can count on us for a stand-out service:



  • Expert response: If a customer calls to report an issue, 99% of the time we can connect them to a trained engineer who may be able to diagnose and even help fix the problem over the telephone
  • Fixed rate repair: If an on-site inspection is necessary, we offer a fixed rate repair service that ensures that the boiler is up and running quickly and within budget
  • 24 hour repair time: Contract customers benefit from priority status when it comes to operational problem solving and repairs – we will always aim to start the process of repair, or resolve the problem, within 24 hours
Learn more

Training

Our courses cover all aspects of boiler management which can be taken at your site or at our purpose built workshop here in Essex. We provide users with comprehensive training on their system and ensure they are completely confident to operate it and we are always on hand with any after care advice that’s needed.

Upon completion of course, all candidates will be awarded a certificate in boiler house training.

Learn more

Chemical de-scales

If your boiler is in need of de-scaling, we offer acid washes.

This is a two-day process that involves circulating the vessel with acid on day 1 and it’s then left overnight. On day 2 more circulation, checks will be made to ensure the acid has done its job, depending on what kind of scale you have, nearly 9 out of 10 times you are left with a pristine boiler shell.



Common Contributing factors to scale build up:

  • In sufficient Water treatment
  • No salt in the brine tank
  • Incorrect blow down procedures (i.e., not blowing down at all)
  • Hard water (area you live in)





Your insurance inspector will check for scale on his inspection. If failed, he will ask you to give it an acid clean.



What will happen

Scale build up on internal pressure side of your boiler can cause adverse problems to the vessel
Cracks can be caused on the boiler shell as a direct result of scale build up.
1mm of scale depreciates your boilers efficiency by 10%

Learn more
