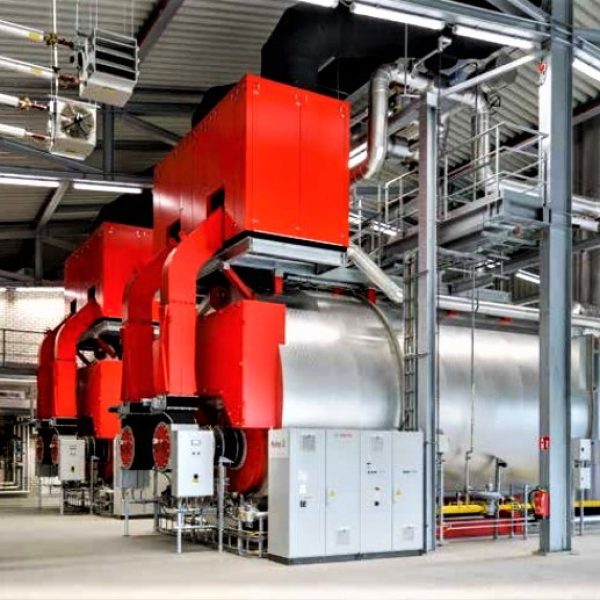

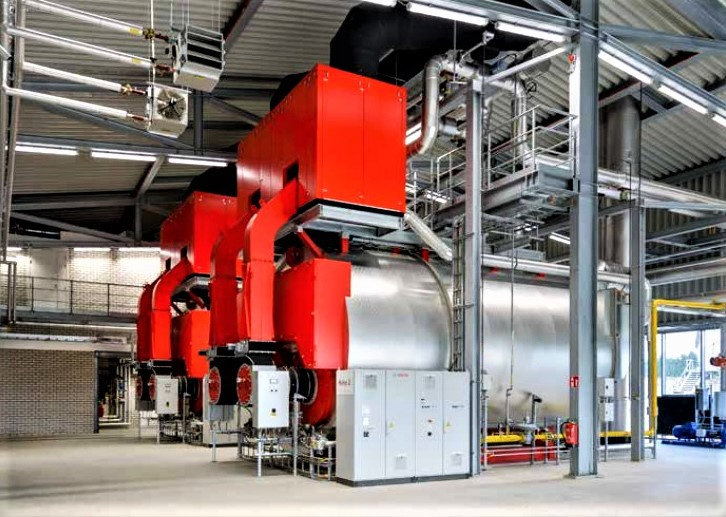

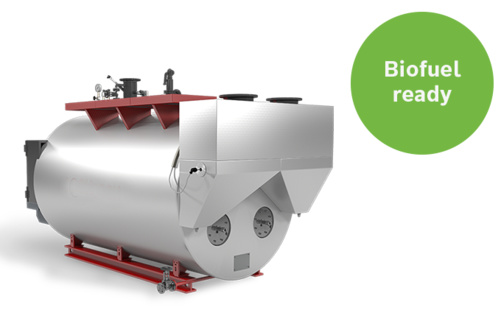

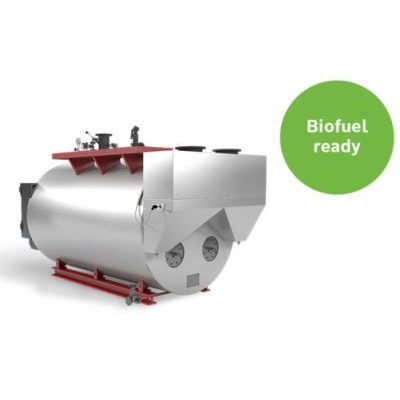

UT-HZ Hot Water Boiler
About the UT-HZ HOT WATER BOILER
The double-flame tube design of the UT-HZ offers total flexibility in the high power range from 13,000 to 38,000 kW at up to 30 bar. The UT-HZ produces consistently efficient heating and process heat, particularly in partial load ranges. By combining it with a flue gas heat exchanger or condensing heat exchanger, and combustion optimising components, you can further improve efficiency and lower running costs.
Heat supply for the future:
Low-NOx or CO2-neutral operation possible
The UT-HZ is compatible with various fuels and can be combined with multi-fuel burners. Additional solutions for low NOx, hydrogen, biofuels or green electricity sustainably reduce CO2 emissions and protect the environment. The climate-neutral fuel design can be implemented either at the factory or later for retrofitting.
|Heat transfer medium||High-pressure hot water|
|Design||Three-pass double-flame tube/smoke tube technology|
|Output||13,000 to 38,000 kW|
|Safety pressure||up to 30 bar|
|Max. temperature||up to 225 °C|
|Fuel||Gas, oil, bio gas, bio oil, hydrogen|
- Double-flame tube hot water boiler for 13,000 to 38,000 kW with very high efficiency across all power ranges
- Particularly suitable for highly fluctuating heat and process heat demand
- Reliable solutions for heating plants and the manufacturing industry with temperature levels up to 225 °C
- Heat supply for the future: Low-NOx or CO2-neutral operation possible
- Complete system with intelligent control technology and protected remote connection
Why you need the UT-HZ Hot Water Boiler
Two independent firing units and flue gas paths create a double control range for individual heat consumption.
Quick to install compared to water-tube boilers.
Its high load flexibility and temperature up to 225 °C are proven for process heating applications and district heating grid.
The UT-HZ is supplied as a complete system with a burner, equipment, components and control cabinet.
There are many reasons for requiring a hire boiler. Maybe An existing boiler plant has broken down? A short-term gap between the removal of your old boiler and installation of your new one? Planning a long-term need for extra capacity? Trialling the development of a new product that requires steam or hot water?
Whatever the reason you may need to hire a commercial boilers, or an entire packaged plant, we are the experts to turn to and here’s why:
There are no hidden extras – you will know exactly how much your boiler hire will be, allowing you to carefully manage your budget.
Quick and easy hook up: our industrial boiler hire units include everything required for the boiler to be up and running immediatelyLearn more
Our Design Service specialises in creating Computer-Aided Design (CAD) models. Our highly-trained draftsmen work with engineers, site operatives and customers to design and create 2D and 3D computer models of Boilers, Ancillary Equipment, Layouts of Boiler houses, Plant rooms, Piping Schematics, Wiring Diagrams and much more.
Working to ensure that your chosen equipment will fit into the required space and providing you with full technical information regarding all aspects of your boiler and ancillary equipment.
We also ensure that the equipment provided meets specification criteria and local regulations including Clean Air Act, Medium Combustion Plant Directive, BG01 and more.
- Bespoke solutions. Our huge range of products and purpose-built manufacturing facility allows us to design and manufacture boiler solutions to meet your precise needs. Book a site survey now and get started.
- Flexible approach. We’re here to help. We’ll work with you at any stage of the project, and are happy to liaise with building service engineers, gas suppliers and architects to achieve the most efficient installation.
- Try before you buy. As well as boiler hire, we can arrange for you to visit a similar installation in-situ so you can see what you’ll be getting and meet our other happy customers
- Clear proposals. After a site visit (if necessary), we’ll provide you with a detailed, clear proposal that includes technical, performance and financial information. If applicable, we will include cost and energy saving projections.
We know that a seamless installation is vital to business continuity and efficiency, and your needs are our main priority. This is why our installation service is second to none:
- Flexible approach: We install at a time that’s best for your business, whether that’s during normal working hours (with a short, planned shutdown if necessary), or at off-peak times such as weekends
- Experienced team: Our engineer, design and sales teams benefit from CFB Boilers’ 126 years’ experience in manufacturing and installing steam boiler solutions. You can benefit from this experience too.
- We love a challenge: Difficult location? Restricted access? Tiny space? No challenge is too big for our highly experienced team as we’ve installed steam boilers everywhere, from tin mines to old cupboards
- Comprehensive service: Our complete range of steam boilers means that we have systems available to suit most applications, which combined with our technical expertise, gives us a distinct advantage when it comes to system installation.
Maintenance & Service Contracts
Achieving maximum longevity, performance and efficiency out of your steam boiler system, and eliminating premature repairs and breakdown, is easily and cost-effectively achieved with our planned preventative maintenance services. We also provide service contracts with a minimum 1 yearly contract as it is required by law that your steam boiler must have a yearly inspection.
- Free boiler clean: As part of a standard service, we will strip your boiler down and give it a thorough clean. This is not standard practice in the industry – we go above and beyond in ensuring the long-term performance and reliability of your boiler
- Fixed price service: We offer fixed rate servicing to give you peace of mind and complete cost control
- No unexpected costs: If any additional work is required, we will always conduct a site visit in order to provide an accurate quotation with us there are no hidden or unexpected costs
- Flexible packages: We will tailor a maintenance package to you so that you get the most efficiency and cost-effective service possible
- Convenient and efficient: It is our aim that your business can continue to run without disruption, so any work carried out will be completed in the most efficient way possible by our expert team of engineers
- Complete peace of mind: Many of our customers choose to retain us on a contract basis, ensuring that standard maintenance and repairs are fully managed.
Long-term performance and reliability are built into the very fabric of our boilers, which are designed and engineered to the highest standards. On very rare occasions, or with some older boilers (some of our boilers installed in the 1950s are still going strong!), repair may be required. If it is, you can count on us for a stand-out service:
- Expert response: If a customer calls to report an issue, 99% of the time we can connect them to a trained engineer who may be able to diagnose and even help fix the problem over the telephone
- Fixed rate repair: If an on-site inspection is necessary, we offer a fixed rate repair service that ensures that the boiler is up and running quickly and within budget
- 24 hour repair time: Contract customers benefit from priority status when it comes to operational problem solving and repairs – we will always aim to start the process of repair, or resolve the problem, within 24 hours
Our courses cover all aspects of boiler management which can be taken at your site or at our purpose built workshop here in Essex. We provide users with comprehensive training on their system and ensure they are completely confident to operate it and we are always on hand with any after care advice that’s needed.
Upon completion of course, all candidates will be awarded a certificate in boiler house training.Learn more
If your boiler is in need of de-scaling, we offer acid washes.
This is a two-day process that involves circulating the vessel with acid on day 1 and it’s then left overnight. On day 2 more circulation, checks will be made to ensure the acid has done its job, depending on what kind of scale you have, nearly 9 out of 10 times you are left with a pristine boiler shell.
Common Contributing factors to scale build up:
- In sufficient Water treatment
- No salt in the brine tank
- Incorrect blow down procedures (i.e., not blowing down at all)
- Hard water (area you live in)
Your insurance inspector will check for scale on his inspection. If failed, he will ask you to give it an acid clean.
What will happen
Scale build up on internal pressure side of your boiler can cause adverse problems to the vessel
Cracks can be caused on the boiler shell as a direct result of scale build up.
1mm of scale depreciates your boilers efficiency by 10%
